Cartridge Gas

Iwatani Cassette-Feu
Tatsujin Slim β

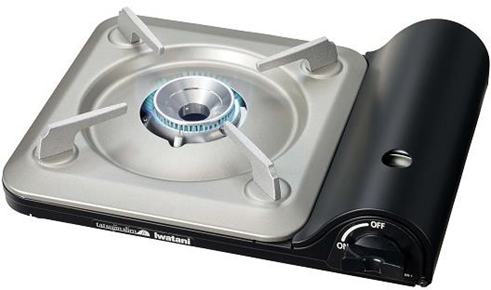

Iwatani Cassette-Feu Tatsujin Slim β

Specification

Product name
Iwatani Cassette-Feu Tatsujin Slim β
Model number
CB-BS-1T
Country of origin
Thailand
Product dimensions
(W) 335 x (D) 275 x (H) 84 mm
Product weight
Approx. 1.3kg (gas cartridge not included.)
Color
Mat black
Heat input and Output (gas consumption)
3.3kW
2,800 kcal/h or equivalent, approx. 236 g/h
(at an air temperature of 20 to 25℃)
Continuation burning time
Approx. 70 minutes
Ignition
Piezoelectric ignition
Cartridge locking/releasing
Magnetic locking
Safety features
Pressure sensor safety device
Cartridge installation safety device
Cartridge
Iwatani cassette gas
Heat panel

As the vaporization of gas progresses during combustion, the temperature drops, the heating power weakness, and it becomes impossible to use all the gas in the gas cartridge. To prevent this, a moderate amount of heat from the flame of the burner during combustion is transferred to the gas cartridge to accelerate the vaporization of gas, which maintains the heating power so that all the gas can be used up.

Materials
Body: Cold-rolled steel sheet
Top plate: Alloyed hot-dip galvanized steel sheet
Trivet: Heat-resistant die-cast aluminum
Burner: Heat-resistant die-cast aluminum
Ignition knob: ABS
EAN
4901140 905933
Warranty
1 year (with warranty card)

Product features and functions
(selling points)

Super Slim! Only 74mm high

The top of the trivet is only 74 mm high from the table surface. The slimmest cooking stove in the Iwatani Cassette Feu Series, making it easy to cook eat.

Easy-to-turn ignition knob

The ergonomically designed ignition knob is easy to pinch and turn.

Vertical flame outlet burner to minimize wasteful flame

The shape of the "flame outlets" are vertically longer than those of conventional products. The long vertical shape prevents flames from spreading outward, controlling wasteful flames that swell out of the pot’s bottom and saving energy.
